NeoBiotech ACM Auto Chip Maker
Efficient Bone Harvesting. Controlled Surgical Precision.
The NeoBiotech ACM Auto Chip Maker provides a fast, controlled solution for harvesting autogenous bone during guided bone regeneration (GBR) procedures.
Designed to collect bone chips directly from the surgical site, the ACM can harvest up to 1cc of autogenous bone in approximately 10 seconds, helping streamline bone augmentation workflows.
Its reusable drill and single-use stopper system allow controlled harvesting to a maximum depth of 4mm, while different drill diameters provide flexibility according to clinical requirements.
Why Choose the ACM Auto Chip Maker?
Designed to make chairside autogenous bone collection straightforward, the ACM combines a practical collection chamber with controlled drilling and convenient bone-chip retrieval.
Rapid Bone Collection
Collect autogenous bone chips efficiently during regenerative procedures, with up to 1cc reported in approximately 10 seconds.*
Depth-Limiting Stopper
A flexible stopper limits drilling depth to a maximum of 4mm and helps retain collected material within the drill chamber.*
Controlled Drilling
Manufacturer-described protocols support measured, deliberate harvesting with saline irrigation.
Convenient Retrieval
Bone chips are collected within the drill chamber for retrieval after harvesting.
Diameter Options
Different available drill diameters help clinicians select a suitable configuration for the intended harvesting site.*
Chairside Efficiency
Supports collection of the patient's own bone within the planned regenerative workflow.
Controlled Autogenous Bone Harvesting
Designed for Guided Bone Regeneration
The ACM (Autobone Chip Maker) is intended to harvest autogenous bone for regenerative applications. Harvest from appropriate intraoral donor sites, including mandibular molar or incisor regions.
The collection chamber and flexible stopper are designed to help manage harvesting depth and retain collected bone chips for subsequent use in the planned procedure.
Practical Surgical Handling

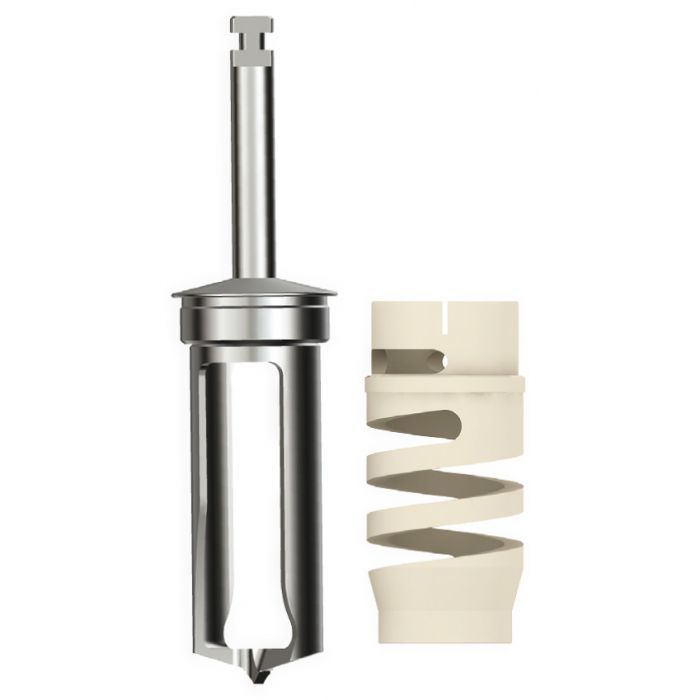

The ACM drill is used with a compatible surgical motor and a single-use stopper. Its design supports controlled bone collection and straightforward retrieval from the central chamber.
With a maximum drilling depth of 4mm when used with the stopper, clinicians can plan harvesting according to the surgical site and the manufacturer's instructions.
Designed Around the Procedure
- Autogenous bone collection for GBR
- Stopper-assisted depth limitation
- Collection chamber for harvested chips
- Reusable ACM drill
- Single-use stopper system
Simple, Controlled Harvesting Workflow
Prepare
Fit the appropriate single-use stopper to the ACM drill and attach it to a compatible surgical implant motor. Assess and prepare the intended harvesting site.
Harvest
Position the drill and apply light pressure. Drill at 300 rpm with saline irrigation. For experienced users, drill at 80 rpm without irrigation.
Retrieve
Once the collection chamber is filled, remove the stopper and retrieve the harvested bone chips for use in the intended regenerative procedure.
Clinical application
Clinical Case: Autogenous Bone Harvesting
See the ACM harvesting sequence, from stopper placement and drilling to collection of autogenous bone chips. The images illustrate the manufacturer's clinical workflow.
Harvesting at the Surgical Site
The ACM is designed to collect autogenous bone chips directly into its drill chamber for use in planned regenerative procedures.
Technique overview
How to Use the NeoBiotech ACM
Use this illustrated guide alongside the harvesting workflow above to understand the ACM's preparation, use and bone collection sequence.
ACM Kit Contents
The Swallow Dental ACM kit is described as including:
- 1 reusable ACM drill
- 7 single-use stoppers
Different drill diameters are available. Confirm the selected configuration before ordering.
Autogenous Bone, Collected Chairside
By collecting the patient's own bone chips at the surgical site, the ACM provides clinicians with a practical tool for procedures requiring autogenous graft material.
Its stopper and chamber design aim to combine controlled harvesting with straightforward handling during the regenerative workflow.
Efficient Bone Collection for Regenerative Dentistry
The NeoBiotech ACM Auto Chip Maker brings together rapid collection, controlled drilling depth and practical surgical handling to support autogenous bone harvesting in guided bone regeneration.
*Follow the current manufacturer's instructions for use.
