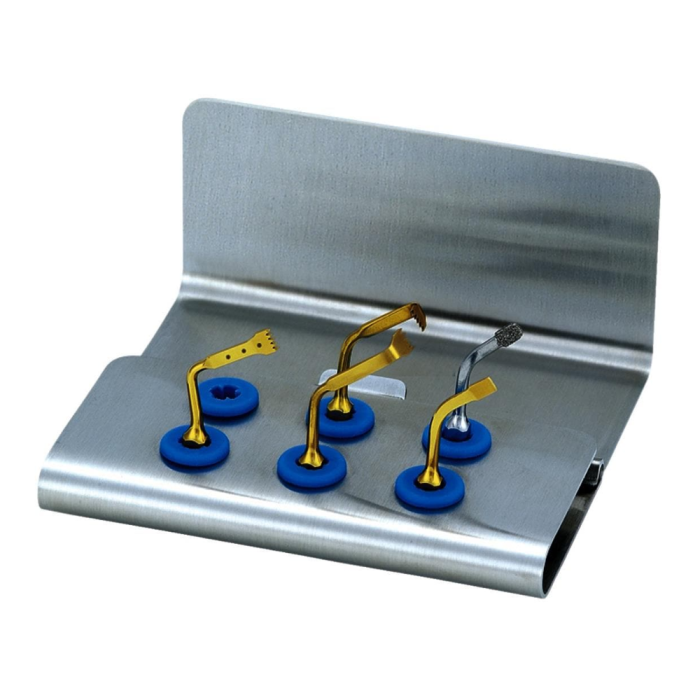

VarioSurg Bone Cut Kit
The NSK VarioSurg Bone Cut Kit is a specialist set of ultrasonic tips designed for precision bone-cutting tasks using the VarioSurg 3/4 systems. It provides an ideal solution for users focused on bone removal, osteotomies, contouring, and graft site preparation--without including sinus or socket lift accessories.
Why Choose the NSK VarioSurg Bone Cut Kit?
Precision Bone Surgery- Includes depth-marked tips like the SG1, allowing you to perform osteotomies and bone resections with controlled, measurable penetration. Ideal for ridge splitting, bone harvesting, and cortical fenestration.
Enhanced Surgical Access- The SG2L and SG2R tips provide angled access to hard-to-reach posterior and interproximal areas--great for curved bone surfaces and tight surgical fields.
Comprehensive Yet Focused- Unlike broader kits with sinus or socket lift tools, this set is entirely focused on bone cutting, making it more relevant and cost-effective for procedures that don't require sinus access. Includes scraping (SG4) and diamond-coated (SG6D) tips for refined contouring and bone window creation.
High-Quality Materials- All tips are coated for durability (e.g., TiN or diamond-coated), ensuring longevity and resistance to wear during repeated sterilisation and use.

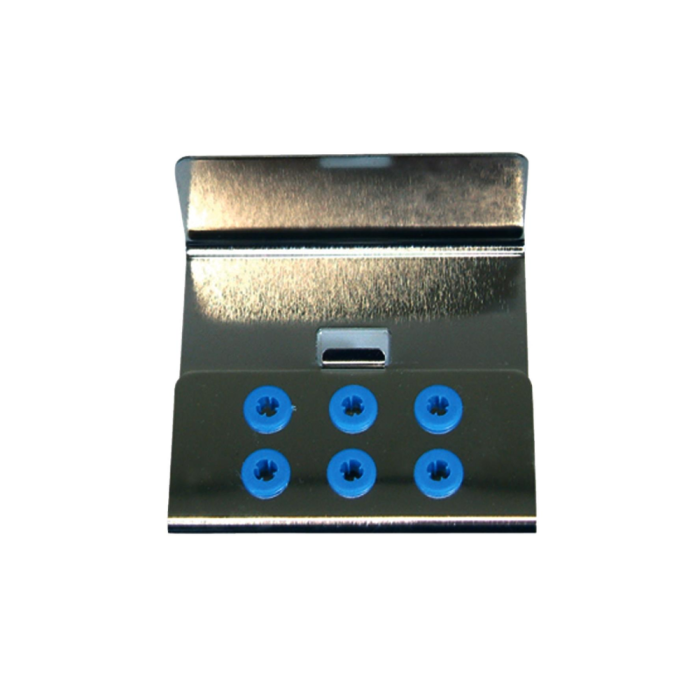

Streamlined Workflow- Comes with a compact, organised tip holder, improving surgical prep time and reducing intraoperative delays.
The NSK VarioSurg Bone Cut Kit is the smart choice for surgeons focused on core bone surgery tasks who want to maximise both clinical efficiency and value.

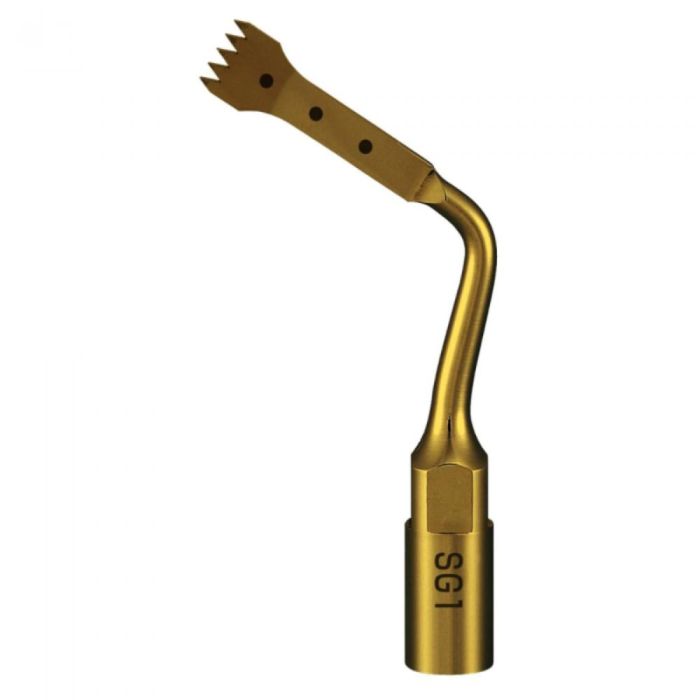

SG1 (Z305101)
TiN coating / Dots mark 3, 6 and 9 mm from top of tip / Five teeth; 0.6 mm thick

SG4 (Z305105)
TiN coating / Edge spatula tip

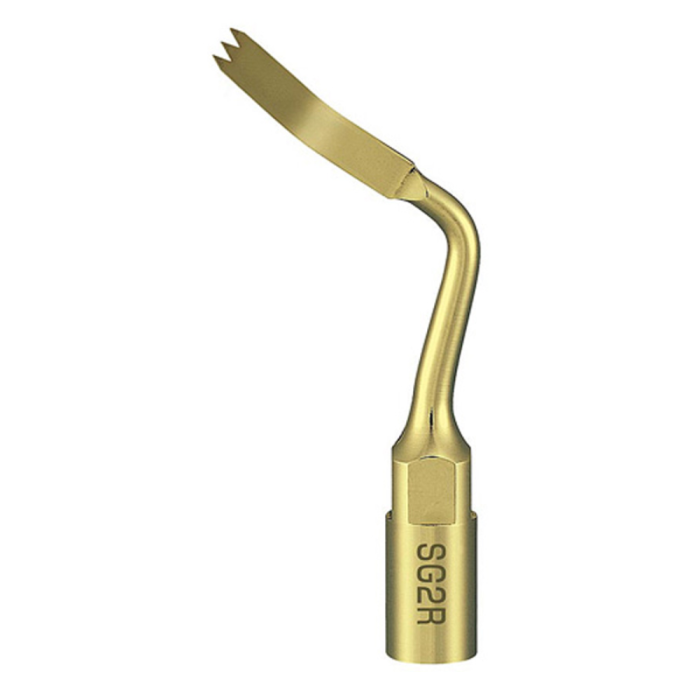

SG2R (Z305102)
TiN coating / Right curved tip* / Three teeth ; 0.6 mm thick
*The direction of the tip’s curve is defined by the tip’s anterior view.

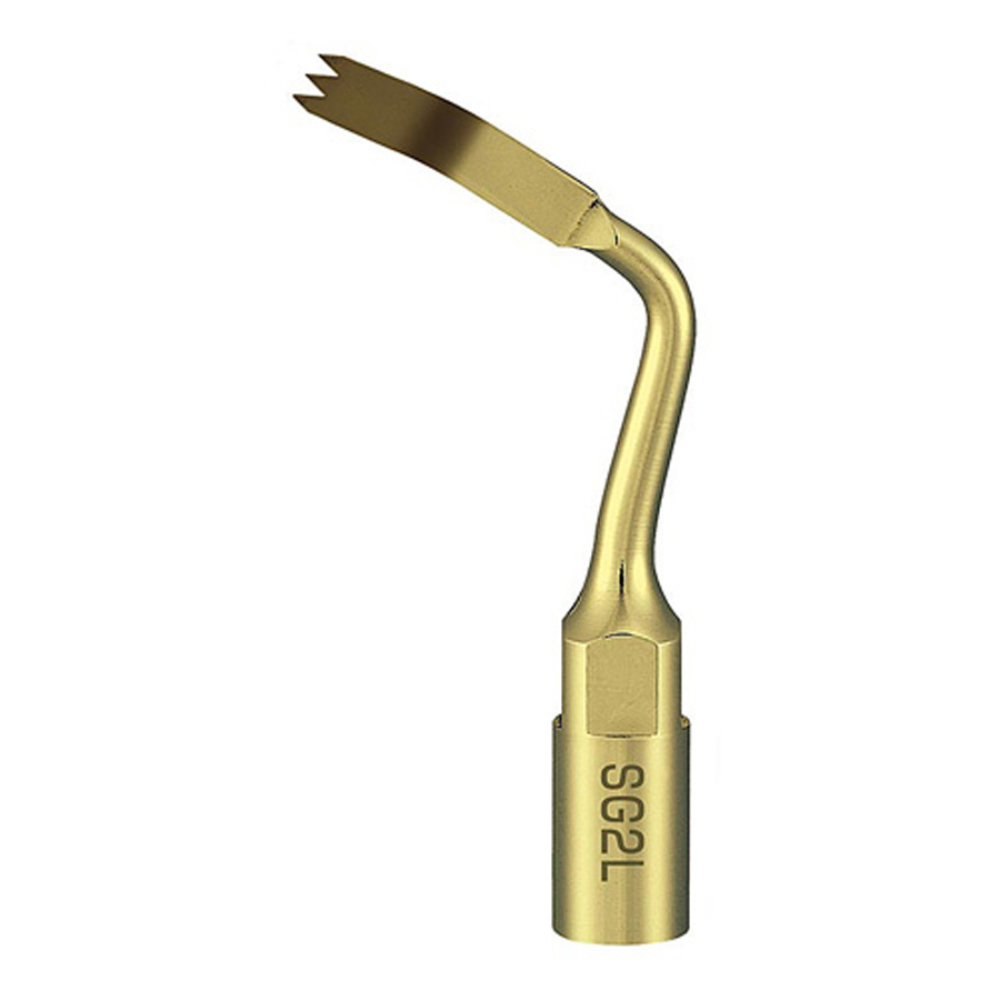

SG2L (Z305103)
TiN coating / Left curved tip* / Three teeth ; 0.6 mm thick
*The direction of the tip’s curve is defined by the tip’s anterior view.

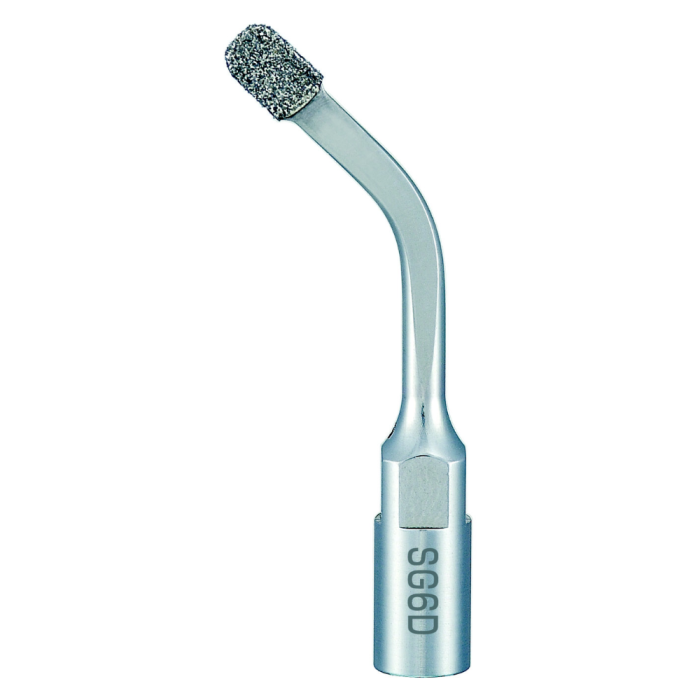

SG6D (Z305107)
Diamond coating
Ref: H31.314.009; H31.314.010; H31.314.012
