W&H Surgical Contra-Angle with 45° Head
The W&H Surgical Contra-Angle handpiece with 45-degree head unites the advantages of straight and contra-angle handpieces for the first time.
Designed with precision in mind, the 45-degree h head is particularly helpful in the surgical extraction of wisdom teeth, intricate tooth separations and apical resections.
The ratio of 1:2.7 makes it possible to achieve speeds of up to 135,000 revolutions per minute on the rotary instrument, depending on the drive speed.
Choose from three units:
- WS-91
- WS-91 L
- WS-91 LG
Why Choose a 45° Handpiece?
- Significantly better visibility of the treatment site
- All the advantages of a straight and contra-angle handpiece in one
- Allows easier access to the maxillary and mandibular molars
- The triple spray guarantees sufficient cooling of the rotary instrument and tooth
W&H Surgical Contra-Angle with 45° Head
WS-91
The W&H WS-91 Surgical Contra-Angle Handpiece with 45-degree head features a push-button chuck system and triple spray.
- 1:2.7
- Dismantlable
- Coupling systems: ISO 3964 (DIN 13940)
- Indications: Hemisection, Extraction of wisdom teeth

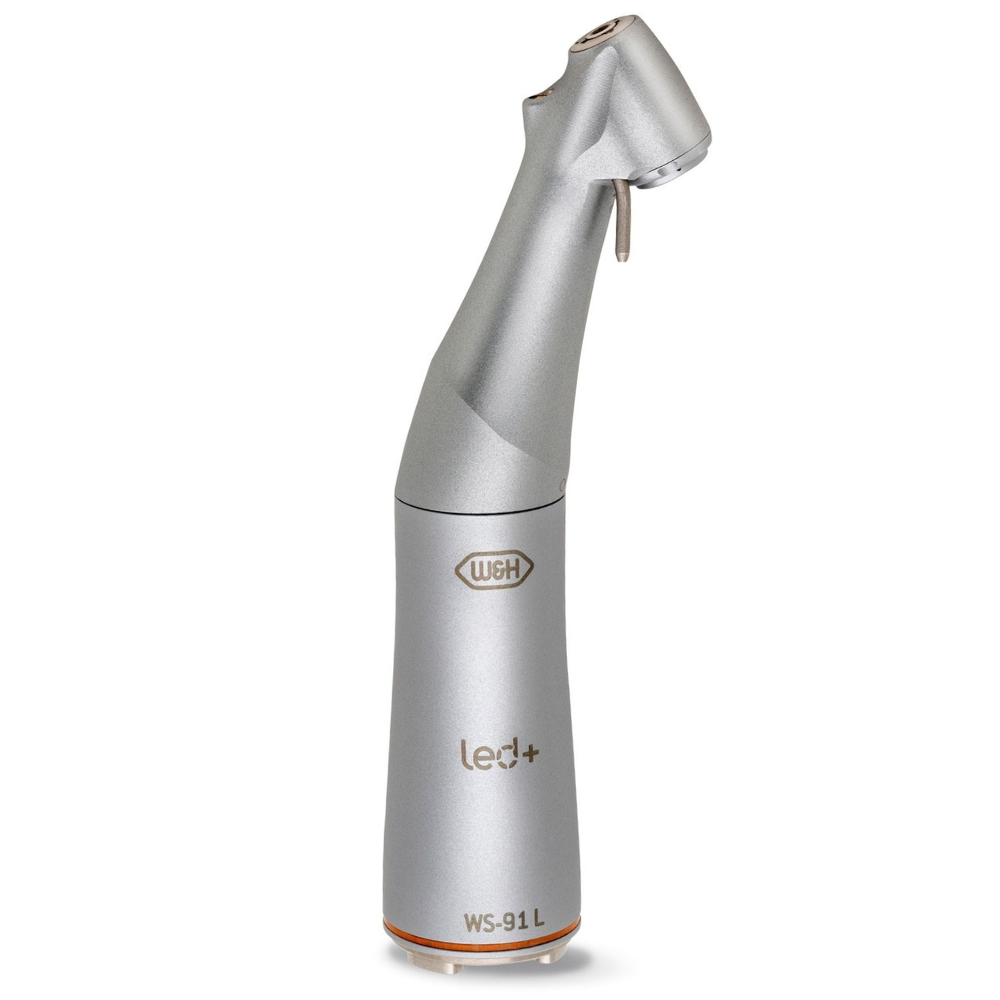

WS-91 L
The W&H WS-91 L Surgical Contra-Angle Handpiece with 45-degree head features an inbuilt mini LED+, push-button chuck and triple spray system.
- 1:2.7
- Dismantlable
- Coupling systems: W&H EM-19 LC / EM-19
- Indications: To improve access in the premolar and molar region
WS-91 LG
The W&H WS-91 LG Surgical Contra-Angle Handpiece with 45-degree head features an inbuilt mini LED+, generator, push-button chuck and triple spray system.
- 1:2.7
- Dismantlable
- Coupling system: ISO 3964 (DIN 13940)
- Indications: Hemisection, Extraction of wisdom teeth
| Type: | WS-91 | WS-91 L | WS-91 LG |
| Transmission Ratio: | 1:2.7 | 1:2.7 | 1:2.7 |
| Coupling System: | ISO 3964 (DIN 13940) | W&H EM-19 LC / EM-19 | ISO 3964 (DIN 13940) |
| Lighting System: | N/A | Mini LED+ | Mini LED+ |
| Light Quality | N/A | Daylight | |
| External Spray: | Triple | Triple | Triple |
| Chucking System: | Push-button chuck | Push-button chuck | Push-button chuck |
| Rotary Instruments: | For surgical burs and cutters with FG shank Ø 1.6 mm | For surgical burs and cutters with FG shank Ø 1.6 mm | For surgical burs and cutters with FG shank Ø 1.6 mm |
| Maximum Drive Speed: | 50,000 min -1 | 50,000 min -1 | 40,000 min -1 |
| Can be Dismantled: | ✔ | ✔ | ✔ |
| SKU: | 30047000 | 30049000 | 30048000 |
