PDT Titanium Wingrove Universal Implant Scaler Maintenance Kit

In stock
Grouped product items
Product Name Qty Price
PDT Titanium Implant Scaler Maintenance Kit with Diamond Head Stone. Ref: R900
£210.00 £252.00
PDT Titanium Implant Maintenance Kit - Without Stone. Ref: R901
£175.00 £210.00

The only implant scaler designed to adapt to implants and not teeth.

Proven not to scratch or leave deposits, PDTs titanium:

  • Is uniquely processed and tested Rockwell C hardness 31 titanium, so doesn't scratch implants and can be sharpened.
  • Is designed specifically for implantology maintenance.
  • Eliminates the risk of infection from trace elements left behind that can alter the biocompatibility.
  • Allows thinner, more durable blades that can dislodge calculus and cement that can lead to peri-implant disease.
  • Is solid USA medical grade titanium.

The three-instrument set was designed by Susan Wingrove, RDH, Fellow of the AIDA. These specialised instruments adapt throughout the entire dentition for all your implant needs. Tighter radiuses and short rounded tips give the practitioner an adaptive edge over "regular" instrument designs currently available.

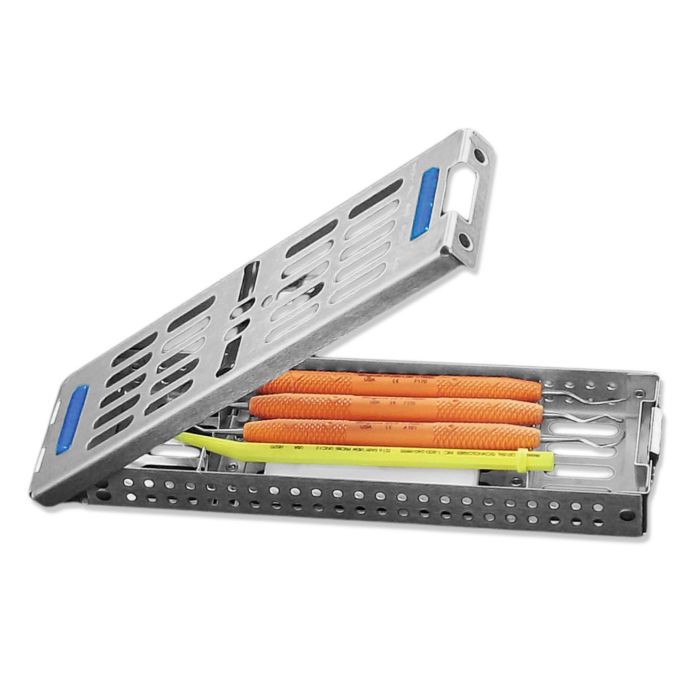

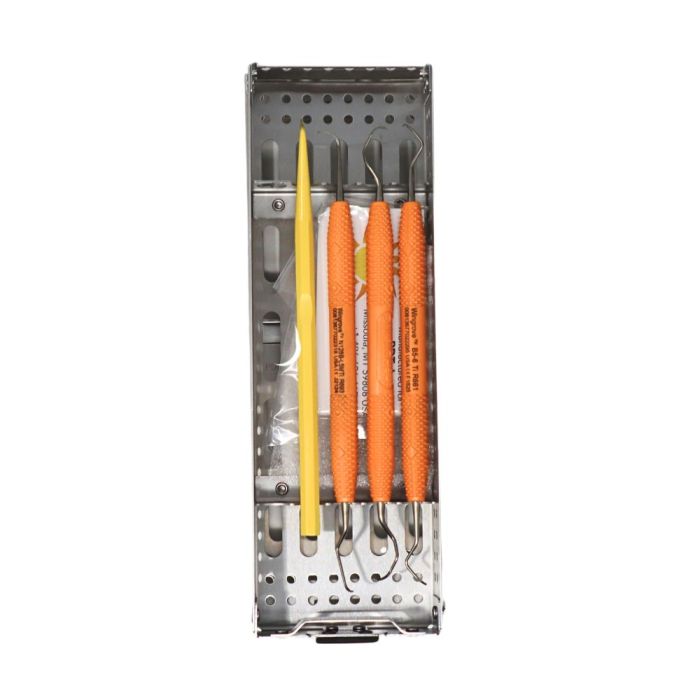

PDT's Wingrove Titanium Instrument Kit contains:

  • R661 Barnhart 5-6
  • R680 Langer 3-4
  • R693 NEB128-L5 Mini

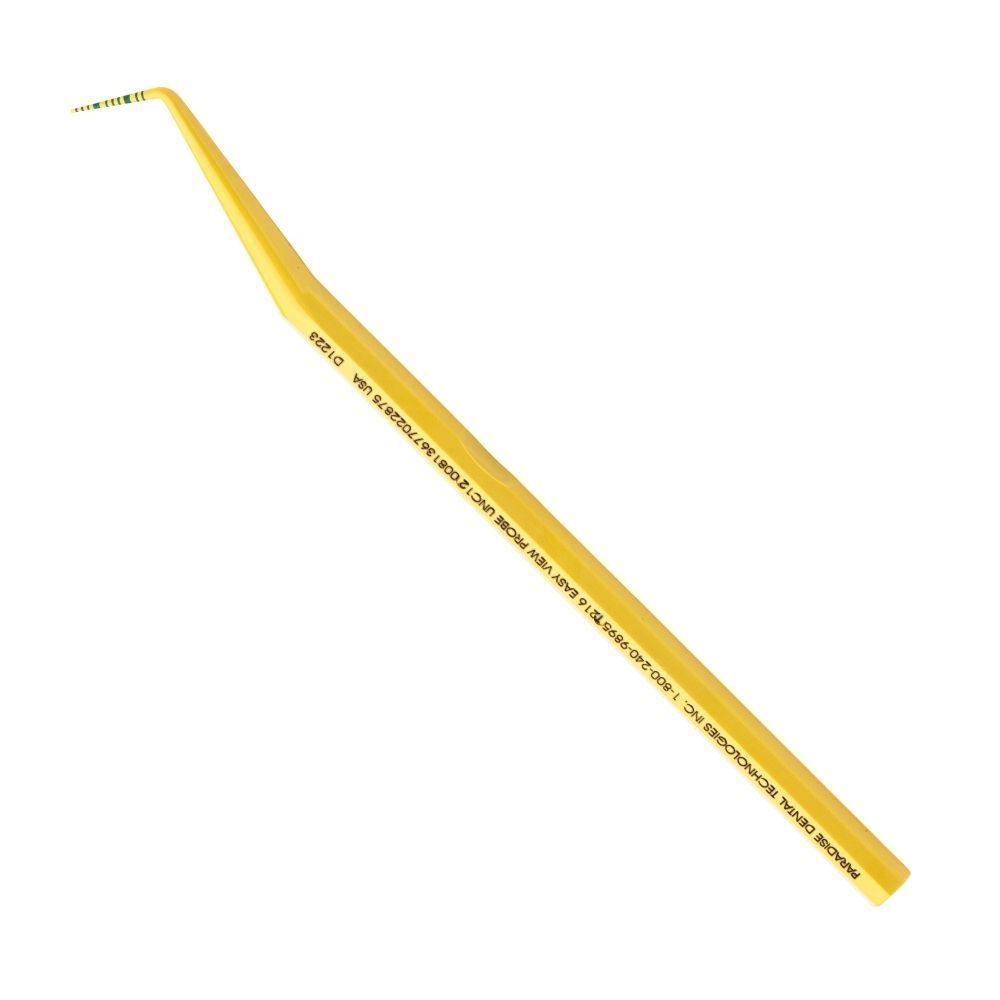

  • T216 Easyview Probe (1 to 12mm)

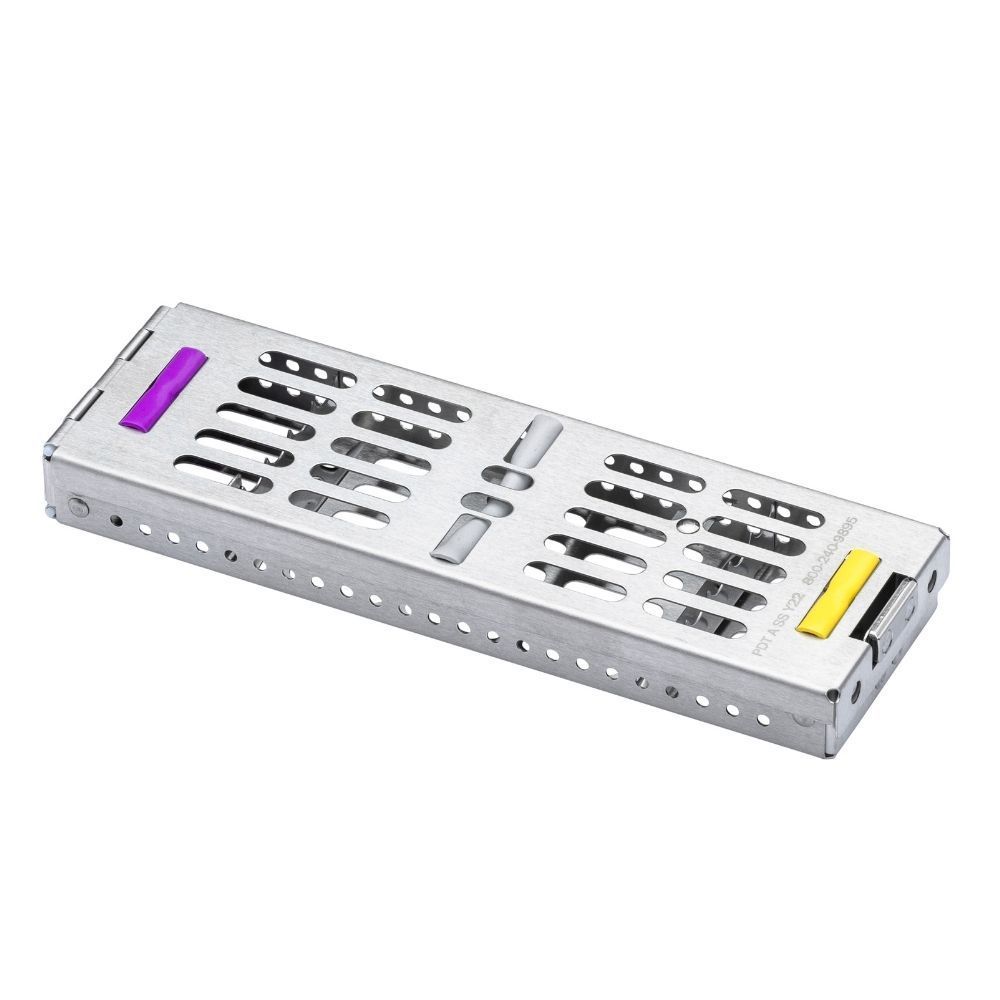

  • T005A-F 5 Instrument Cassette

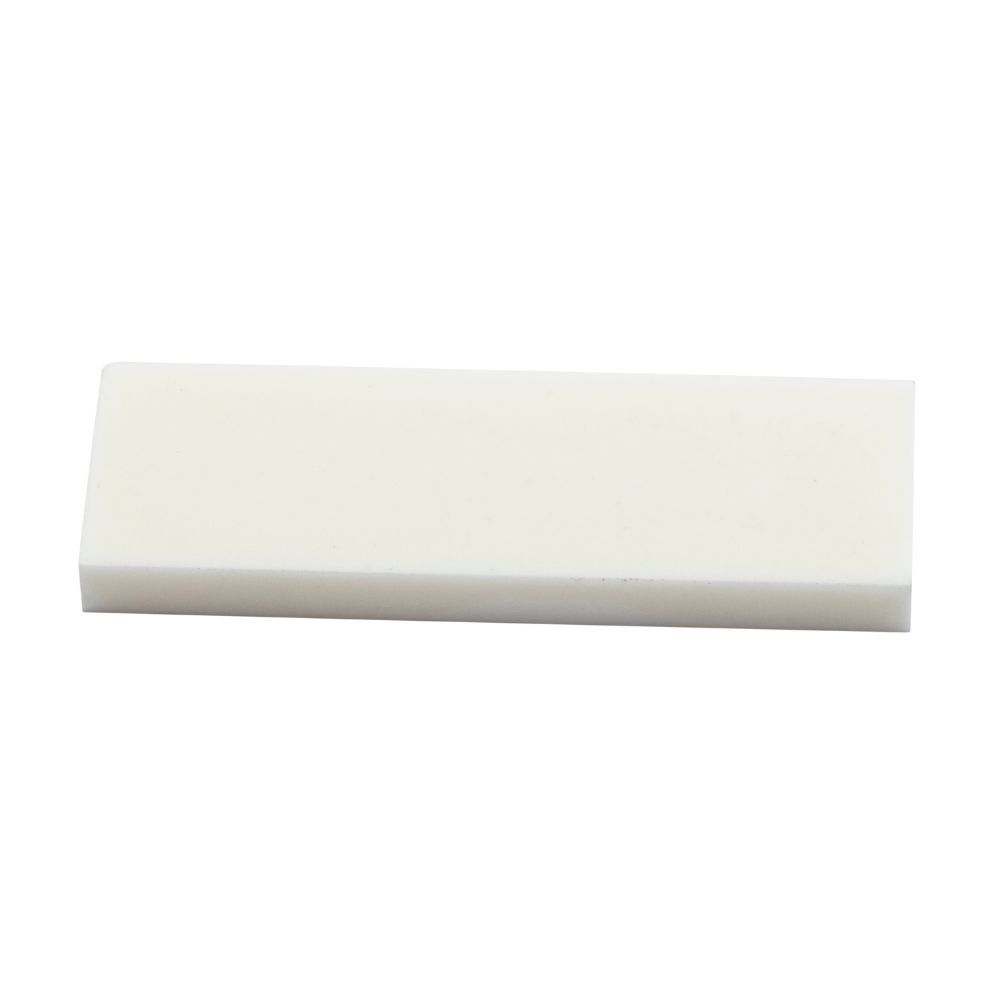

  • Please select whether you would like your kit with or without a T061 Diamond Head Sharpening Stone.

PDT recommend that you have a dedicated stone for sharpening Titanium instruments so that the softer Titanium tips are not damaged by Stainless Steel dust left on the stone.

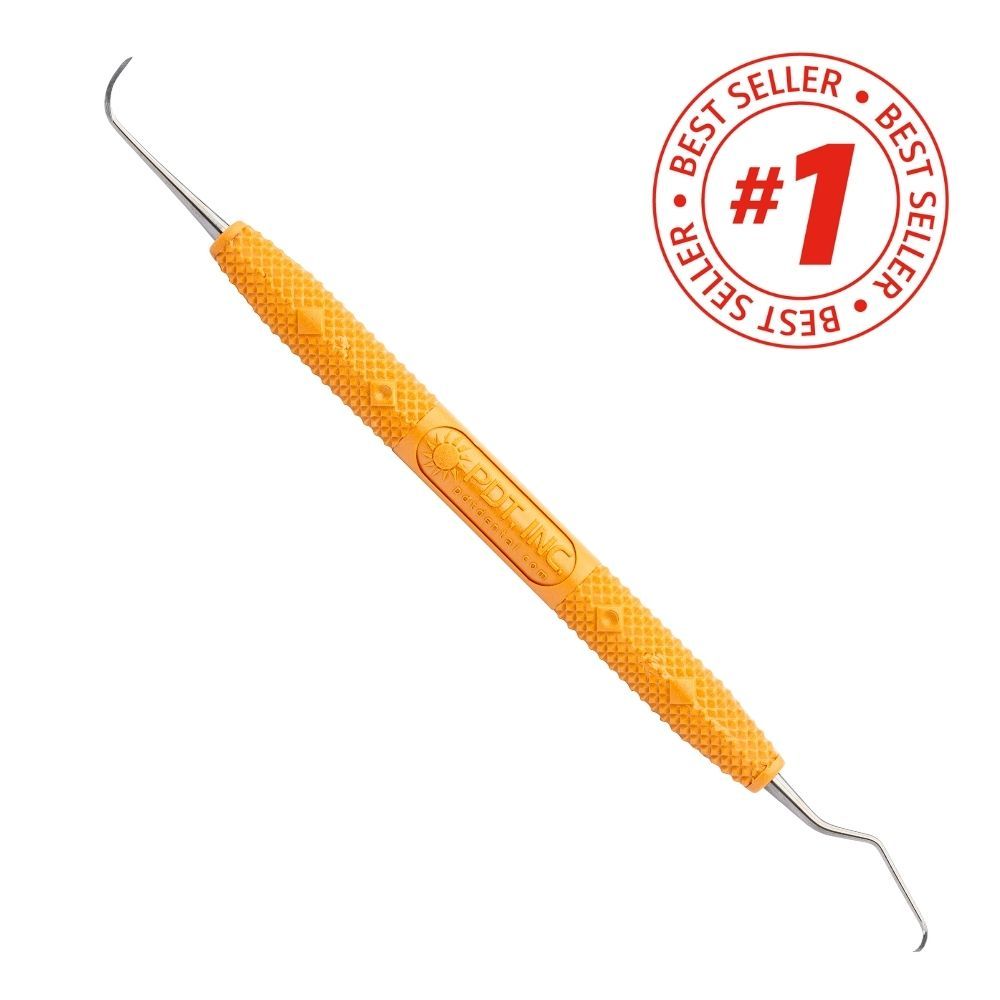

The R693 Titanium NEB128-L5 Mini is designed for single implants, ball-locator implants or bar-retained implants. This blunted Ti NEB128 and Langer 5 Mini is designed to debride the screw indentations of locator implants and for exposed threads using the shorter radius blade tip. For posterior and anterior implants with exposed threads, apply a careful short horizontal stroke in a side to side motion one thread at a time. N128 is designed to remove residual cement or to dislodge calculus under the Hader bar with short horizontal strokes.

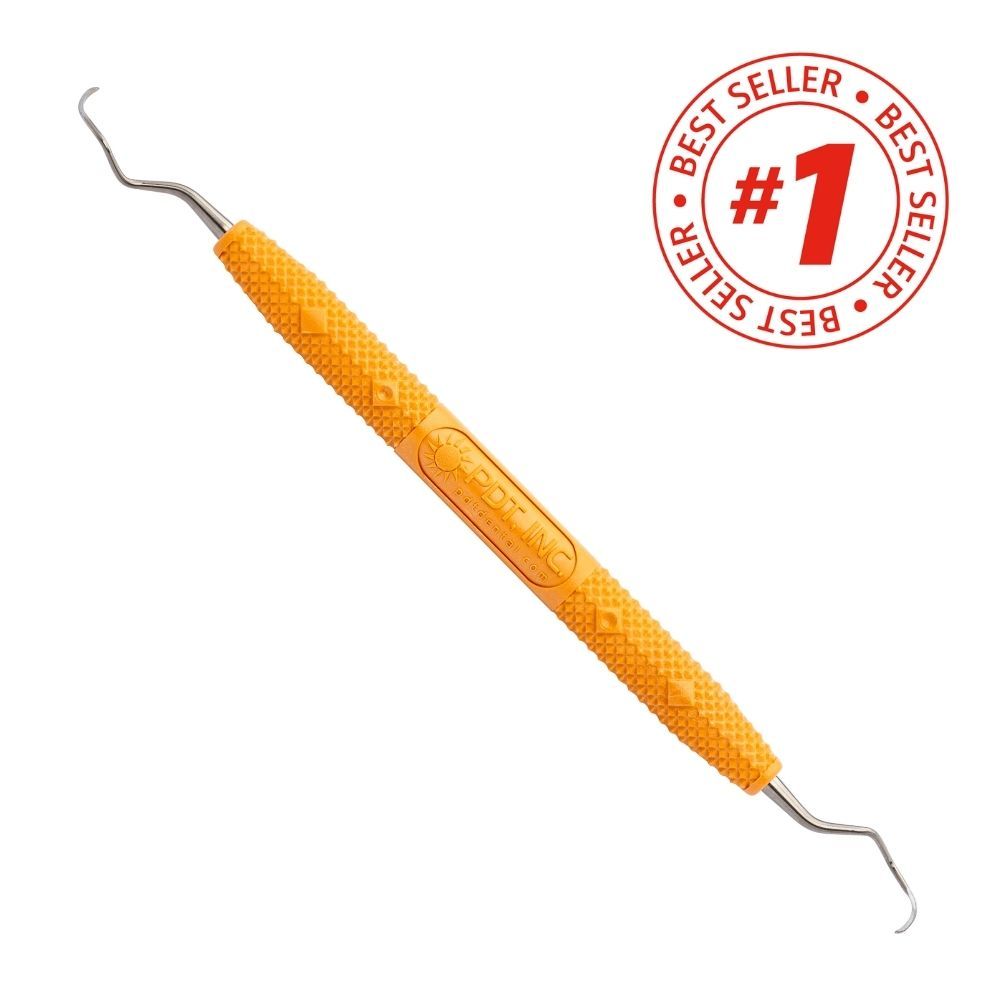

The R680 Titanium Langer 3-4 is designed for narrow-based implants that also have a narrow platform. It is ideal for lower incisors, congenitally missing laterals, and posterior areas with limited horizontal bone. To adapt, apply short horizontal strokes to dislodge calculus present on the implant’s crown, bridge or full-fixed framework.

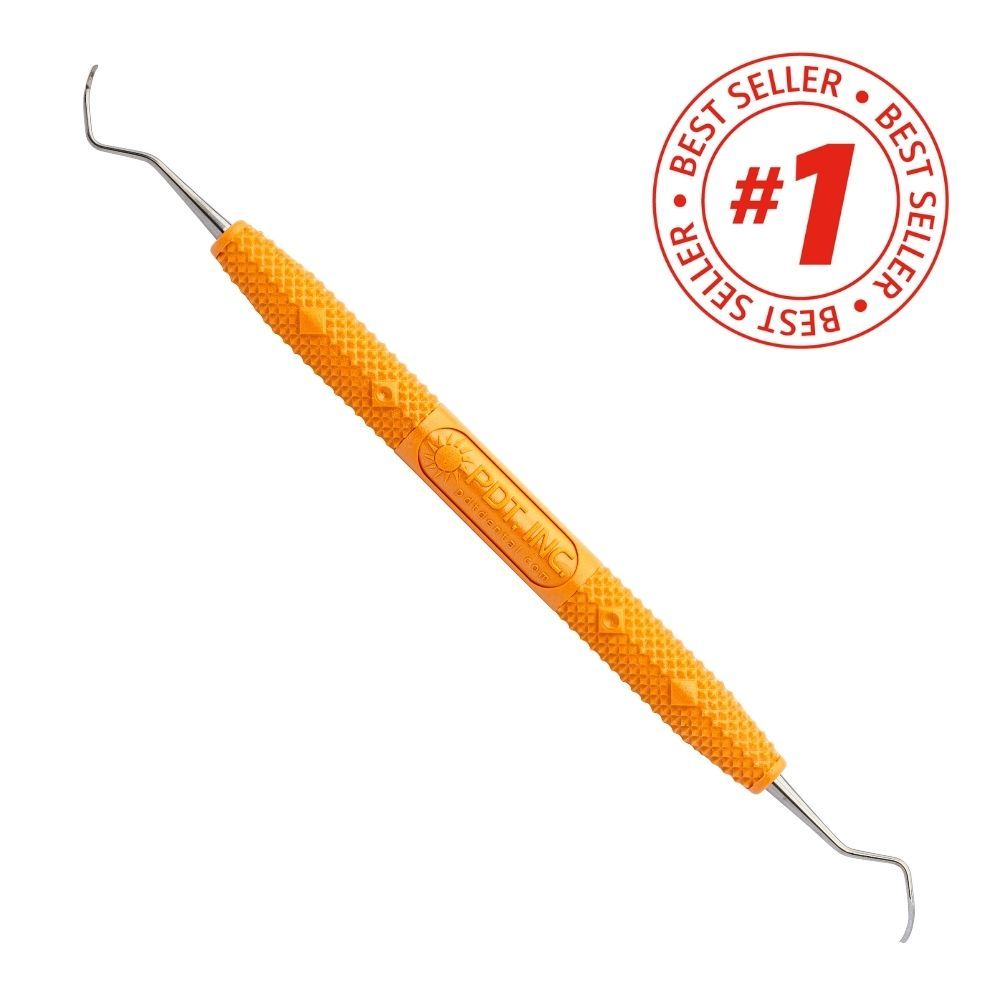

The R661 Titanium Barnhart 5-6 is designed for wide-based single posterior implants. Apply the instrument in short, horizontal strokes to dislodge calculus on implants, crown or bridge.


PDTs uniquely processed solid titanium does not scratch implants and can be sharpened.

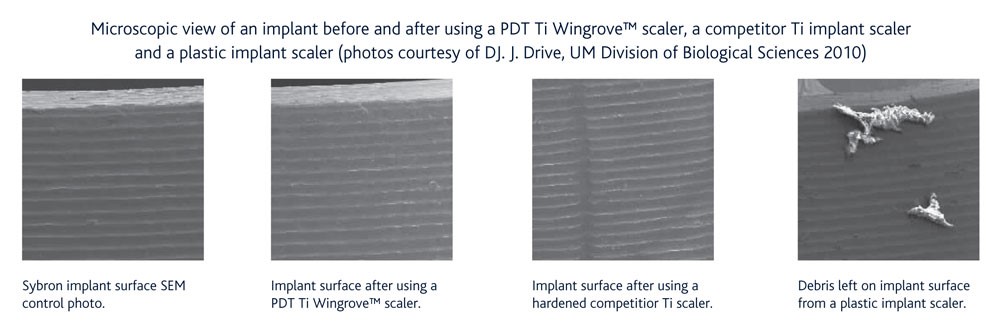

implant under microscope
