S5 Piezomed Sinus Lift Tip
The W&H Piezomed instrument range includes different instruments for bone surgery, periodontology and extraction, for retrograde endodontics and for lateral sinus lift.
As soon as an instrument is inserted, Piezomed automatically detects the instrument and assigns it to the correct power class. This not only facilitates operation but also increases safety. In addition, the risk of overloading the instruments is reduced and the service life of your instruments considerably extended!
Instruments for Lateral Sinus Lift

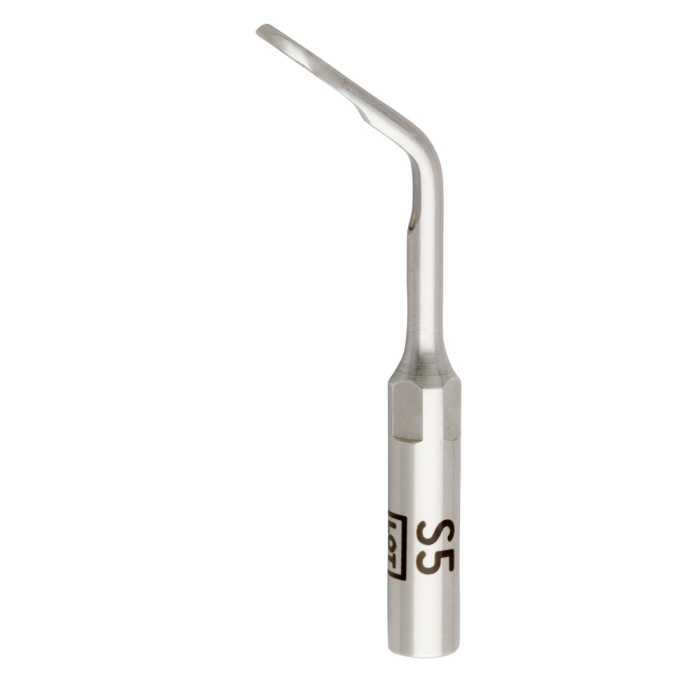

S5 (REF 05542800)
Instrument with rounded edges for atraumatic detachment of the Schneiderian membrane.
Why Choose The W&H S5 Piezomed Sinus Lift Tip?
Rounded for Maximum Membrane Protection- The S5 features a smooth, rounded tip geometry specifically designed to gently glide along the sinus floor without catching or tearing the delicate membrane. Minimises the risk of perforation, particularly in deep or wide sinus cavities where visibility is reduced.
Atraumatic Final Detachment- Ideal for completing the last stages of membrane elevation after intial lifting with the S3 and S4 tips. Offers a safe way to detach the membrane from the medial wall or more distant areas of the sinus cavity.
Precision via Ultrasonic Vibration- Utilises ultrasonic energy rather than rotary movement to allow controlled, gentle elevation. Delivers high tactile sensitivty, which enhances safety and user confidence in anatomically sensitive zones.
Automatic Recognition with W&H Piezomed Units- Like all Piezomed tips, the S5 is automatically recognised by the W&H Piezomed surgical unit, which sets the correct power level instantly---reducing setup time and operator error.
Part of a Complete Sinus Surgery System- The S5 tip works in harmony with the full sinus lift set (S1-S4), forming the final step of a proven, minimally invasive protocol: S1- bone window outline, S2- window enlargement, S3- initial membrane separation, S4- continued elevation, S5- final detachment in deeper sinus zones.
This tip would be ideal for the final stages of Schneiderian membrane elevation, deep sinus anatomy or wide lateral windows, and for clinicians seeking maximum protection and tactile control.
