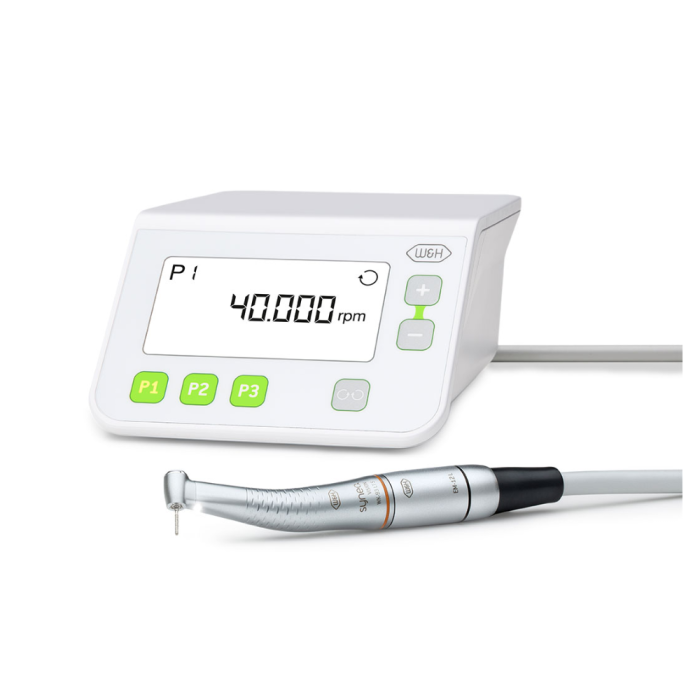

MF-100 Plug & Play Control Unit with EM-12 Motor
Connected simply by inserting the turbine hose of your dental unit into the rear of the MF-100 and the connection to the power grid, you’ll be able to control the device via your dental unit’s standard foot control.
The plug-and-play display is simple to use without any previous instruction or training. The display can also be removed from the Add-on and positioned independently of the control module.
Why Choose The W&H MF-100 Plug & Play Control Unit with EM-12 Motor?
Effortless Integration- Plug-and-Play Design: Requires no modifications to your existing dental unit. Simply connect the turbine hose and power supply to start using. Flexible Installation: Install the MF-100 control unit on the side of your dental table of beneath it, with the option to remove the display for independent positioning.
Compact and Ergonomic- Lightweight Motor: The EM-12 L motor is 25% lighter and 15% shorter than its predecessors, reducing hand fatigue during extended procedures. Optimal Balance: Its slim design ensures a comfortable grip, enhancing precision and control.
Advanced Technology- Brushless Motor: Offers consistent high power, a broad speed range from 100 to 40'000 rpm, and a long service life. LED Illumination: Integrated LED technology provides daylight-quality lighting, improving visibility during treatments.
Quiet Operation: Operates at a noise level of just 43 db(A), ensuring a comfortable environment for both patient and practitioner.
Versatile Compatibilty- ISO Short Coupling: Compatible with all conventional straight and contra-angle handpieces, including short editions, offering flexibility in instrument choice.
The W&H MR-100 Plug & Play Control Unit with EM-12 L Motor combines advanced technology, ergonomic design, and cost-effectiveness, making it an excellent choice for dental professionals seeking a reliable and efficient electric motor system.
Delivery costs are calculated based on the total weight of your order.
Your final postage charge will be clearly displayed at checkout.
For full details, please visit our Delivery & Returns pages.
MF-100 Plug & Play
- Speed range: 2,000 – 40,000 rpm
- Mains voltage: 100 – 240 V, 47 – 63 Hz
- Dimensions (height x width x depth): 92 x 156 x 211 mm
- Weight: 1.06 kg
- Warranty: 24 months
EM-12 L
- Speed range*: 100 – 40,000 rpm
- Maximum power: 59 W
- Length (effective, without ISO connection): 31.55 mm
- Weight: 57 g
- Noise level: 43 dB (A)
- Light: LED
- Spray: internal
- Cooling air: 6 – 8 Nl/min
- Direction of rotation: Forward/reverse operation
- Instrument coupling: ISO 3964 (short) compatible
- Warranty: 24 months
*Speed range depends on motor/system version
Ref: 30065000
Ref: EM-12LBIS
